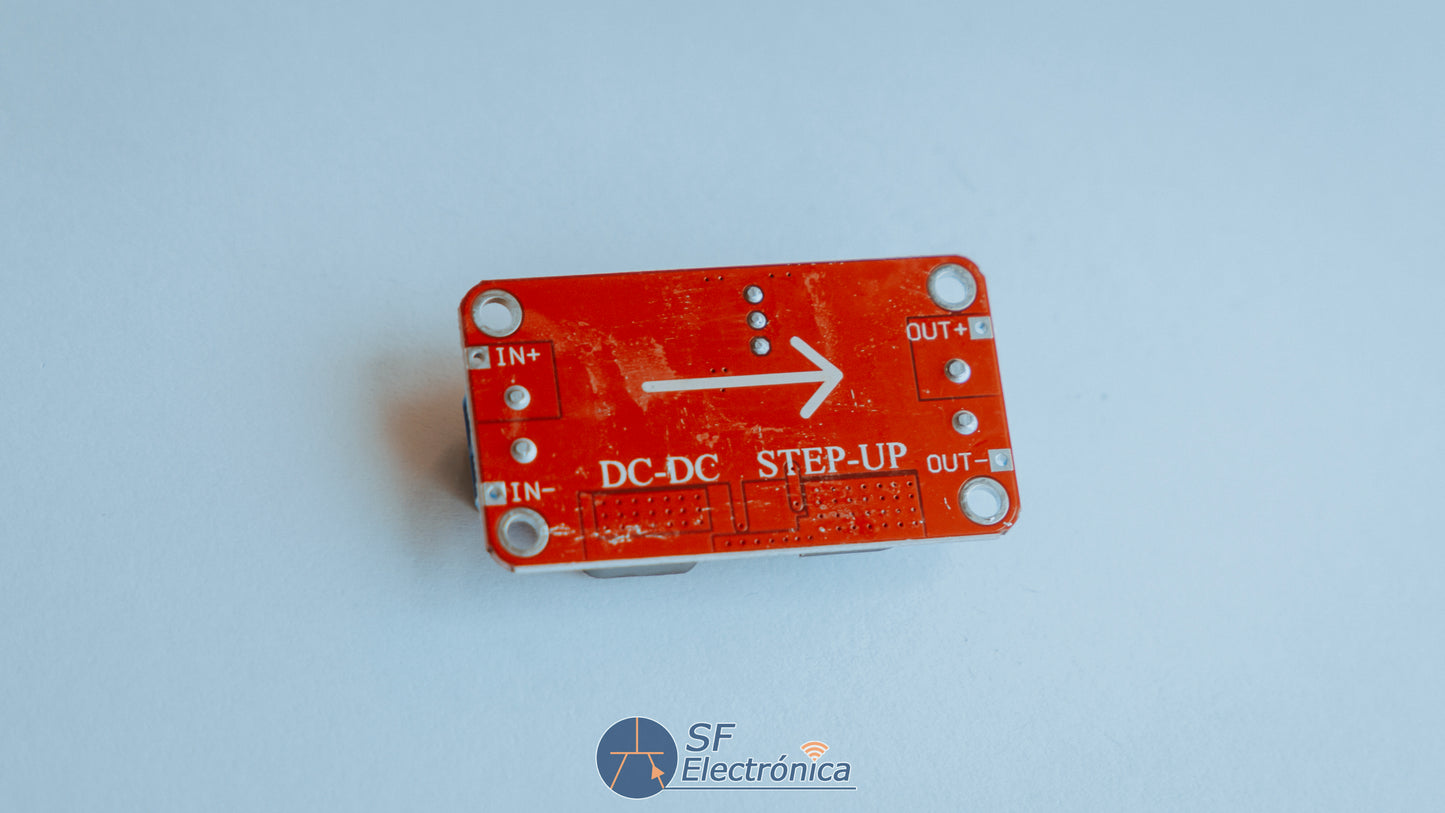

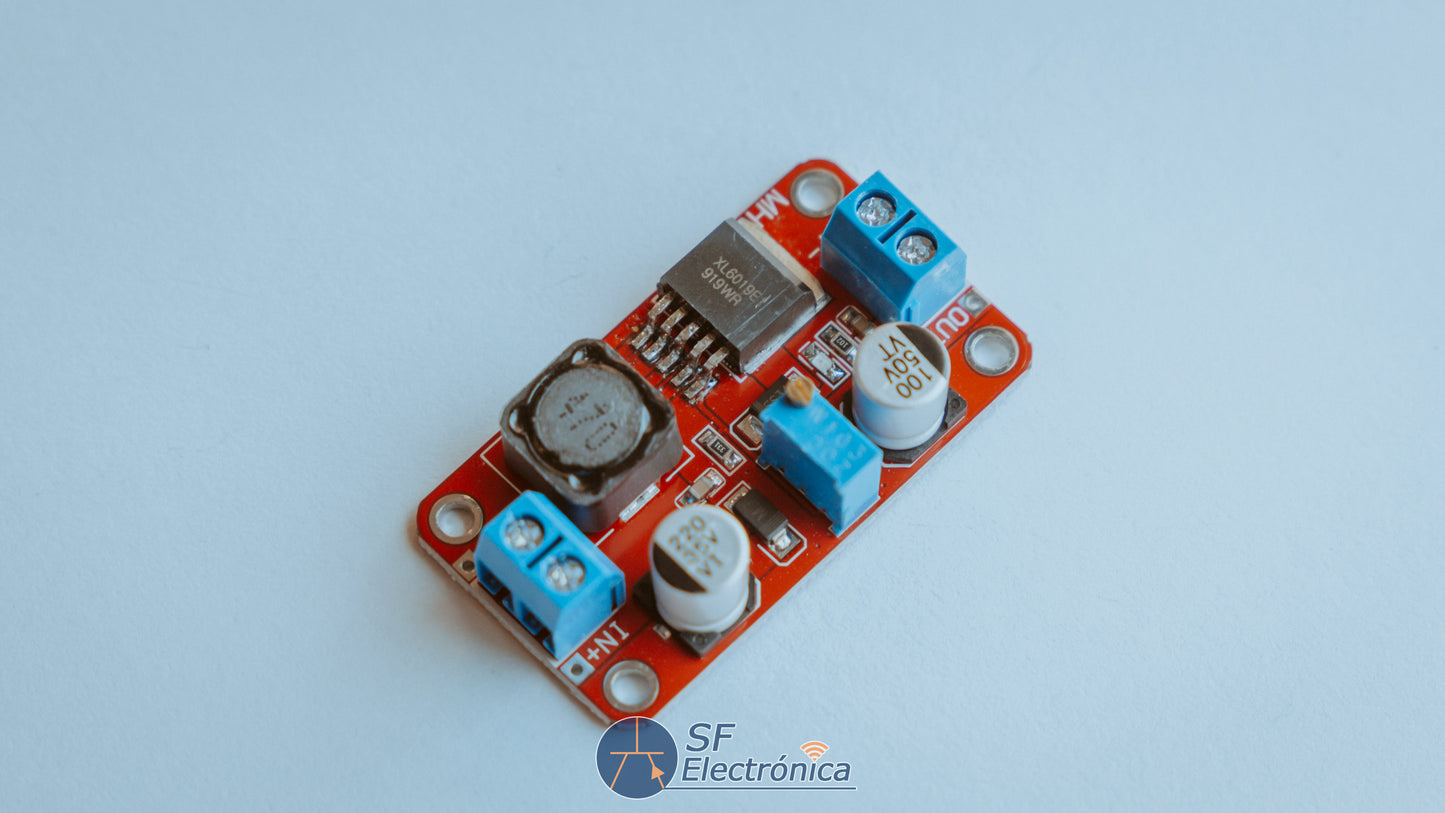

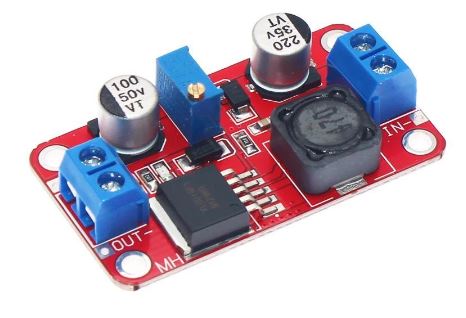

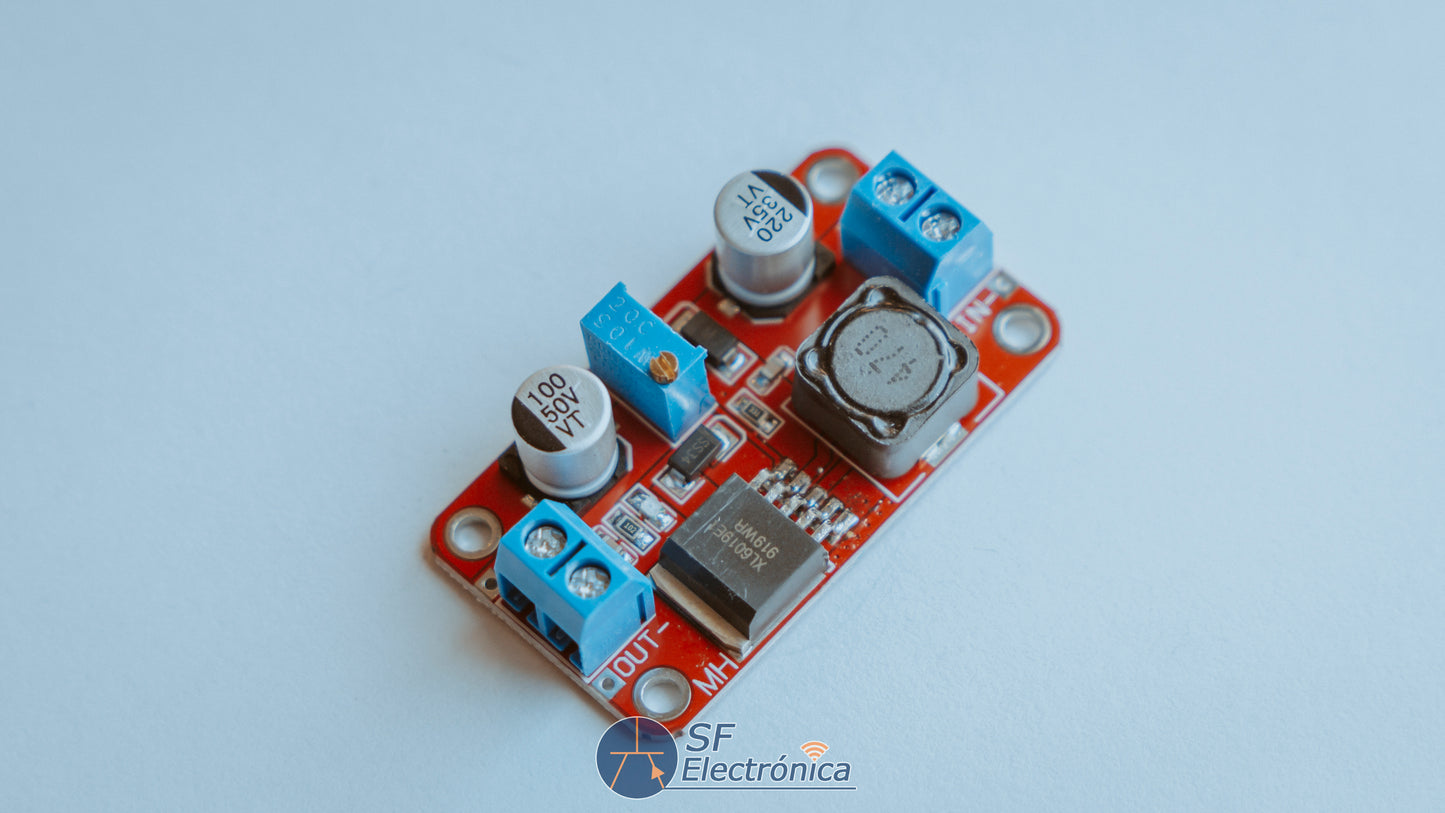

DC-DC CONVERTER ENT 3V-35V SAL. 5V-40V3A AJUSTABLE

• Fuente de alimentación DC-DC
• Entrada 3V-35V
• Salida 5V-40V
• 3A
• Módulo de potencia
• Regulador de salida ajustable
• Referencia: XL6019

ESPECIFICACIONES:

• Module feature: XL6019 step up module
• Module type: Non-isolated boost
• Rectification method: Non-synchonous rectfication
• Input voltage: 3V-35V
• Output voltage: 5V-40V(notes can not step down voltage)
• Input current: 3A(maximum 5A)
• Transfer efficiency: 94%(The highest) Normal efficiency for 85%
• Switching frequency: 220KHz 9.Output ripple:<100mV
• Load regulation: +-0.5%
• Voltage regulation: +-0.5%
• Operating temperature: -20°~+85°
• Size:5cmx2.8cmx1.2cm(2.28"x1.10"x0.47")
